Huber needle making machine
What is Huber needle?

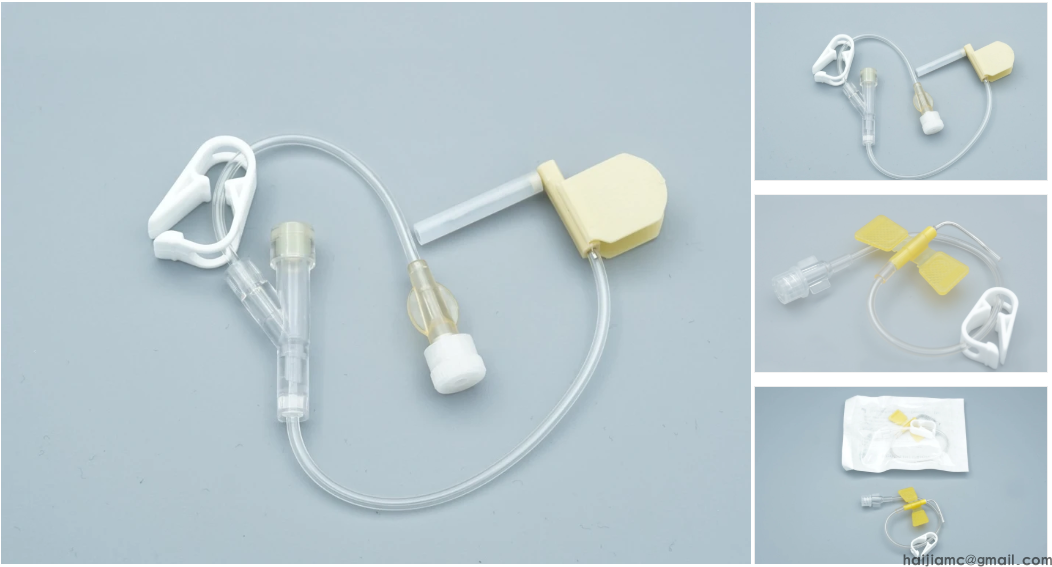

The Huber Needle is used to feed medicine to the device implanted in patient hypoderm.
Huber needle Features:
90 degree SUS304 stainless steel needle.Needled hub and wing design offers secure and accurate needle placement.A rotating wing providing less stress on both the tissue and the port.Color-coded wings for easy size identification. Occlusion clamp for easy one-handed manipulation.Non-DEHP fluid path.Latex free.
So how to make it. need how many kinds of machine.let's see it's specification first.
Huber Needle Specifications
Hub Material: Plastic
Hub Type: Winged Hub
Needle Material: Stainless Steel
Needle Style: Right Angle Needle
Flow Control Type: Pinch Clamp
Sterility: Sterile
Available in different lengths and diameters
Gauges: 18G, 20G, 21G, 22G, 23G, 24G, and 25G
Lengths: 15, 17, 20, 25, 30, 35 mm, etc.
Available with or without Y injection site
| Description | O.D. | Gauge | Color code | Size | Qty/Case (Pcs) |
| Huber Needle | 0.5 | 25G | Orange | 0.5×15mm | 1000 |
| Huber Needle | 0.55 | 24G | Purple | 0.55×15mm | 1000 |
| Huber Needle | 0.6 | 23G | Dark Blue | 0.6×15mm | 1000 |
| Huber Needle | 0.7 | 22G | Black | 0.7×15mm | 1000 |
| Huber Needle | 0.8 | 21G | Dark Green | 0.8×20mm | 1000 |
| Huber Needle | 0.9 | 20G | Yellow | 0.9×20mm | 1000 |
| Huber Needle | 1.2 | 18G | Pink | 1.2×20mm | 1000 |
| Huber Needle with Y connector | 0.5 | 25G | Orange | 0.5×15mm | 1000 |
| Huber Needle with Y connector | 0.55 | 24G | Purple | 0.55×15mm | 1000 |
| Huber Needle with Y connector | 0.6 | 23G | Dark Blue | 0.6×15mm | 1000 |
| Huber Needle with Y connector | 0.7 | 22G | Black | 0.7×15mm | 1000 |
| Huber Needle with Y connector | 0.8 | 21G | Dark Green | 0.8×20mm | 1000 |
| Huber Needle with Y connector | 0.9 | 20G | Yellow | 0.9×20mm | 1000 |
| Huber Needle with Y connector | 1.2 | 18G | Pink | 1.2×20mm | 1000 |

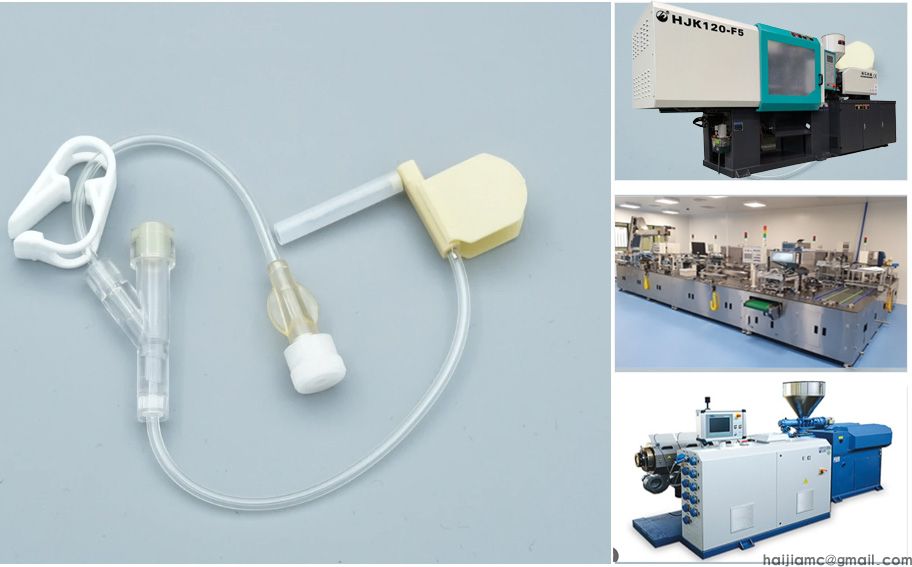

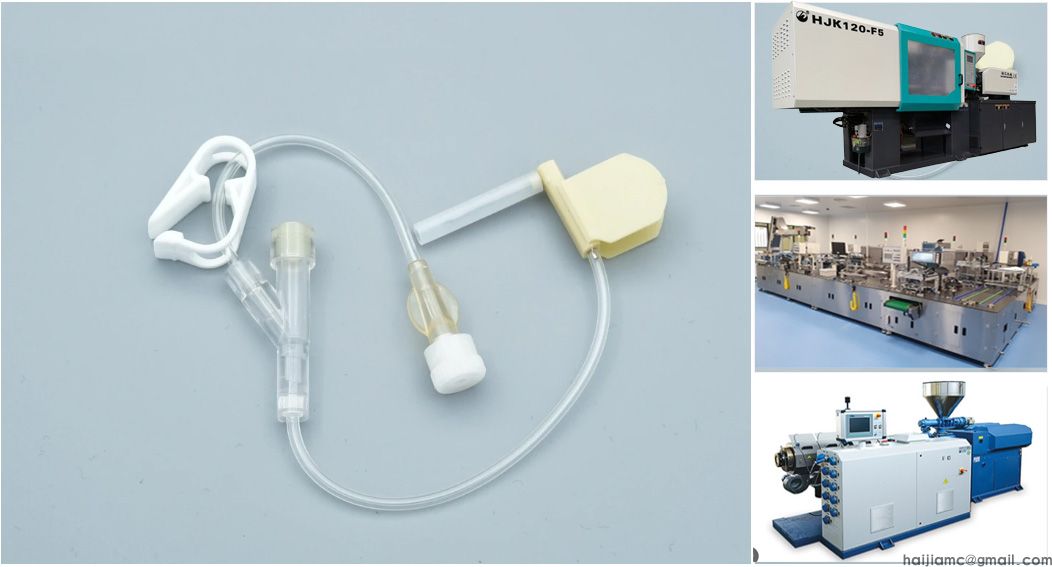

So there are different machine for making huber needle.
Plastic Injection molding machine: make Y connector,caps and Butterfly Wings.There are many different colors Huber needle.
so need other auxiliary equipment like color mixer,color doser.Injection machine type is full electric will be better.Medical equipment always require very clean.full electric machine don't use hydraulic oil. so can keep the workshop clean.other auxiliary equipment also required,like auto loader,hopper dryer,crusher,cooling chiller etc.
Pipe making machine-extruder,making the plastic cup.
Huber needle assembly machine.
Assembly the pipe,Y connector and other Accessories together.There are semi automatic and full automatic assembly machine.
